DIN 382
Narzynki sześciokątne do gwintu amerykańskiego zunifikowanego UNC wykonane wg. ASME B1.1 w tolerancji 2A ze stali szybkotnącej HSS. Zakres dostępnych średnic UNC1/4" - UNC2".
| Zastosowanie | ||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1.1
|
1.2
|
2.1
|
2.2
|
2.3
|
3.1
|
3.2
|
3.3
|
4.1
|
4.2
|
5.1
|
5.2
|
6.1
|
6.2
|
7.1
|
8.1
|
8.2
|
9.1
|
10.1
|
10.2
|
11.1
|
| Legenda | ||||||||||||||||||||
| Rekomendowane użycie | ||||||||||||||||||||
| Możliwe użycie | ||||||||||||||||||||

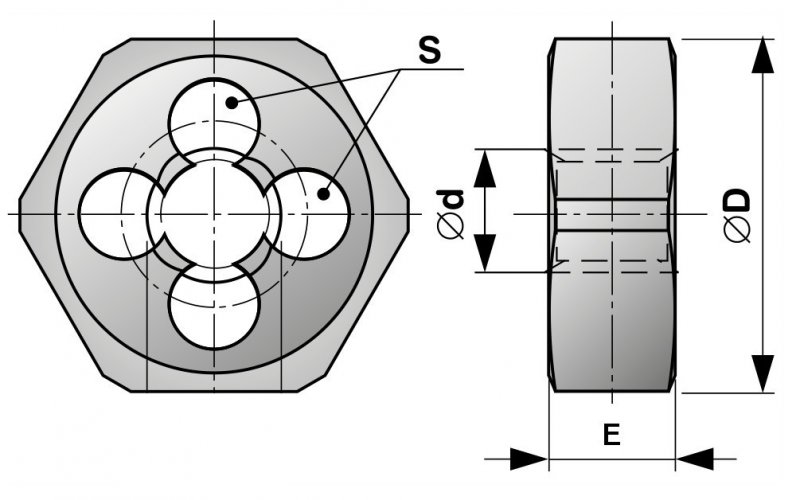

| Kod | ∅d1 | z/1" | P | ∅D | E | S |
 |
|---|---|---|---|---|---|---|---|
| 225140 | UNC 1/4" | 20 | 1,27 | 18 | 7 | 4 | 6,22 |
| 225516 | UNC 5/16" | 18 | 1,411 | 21 | 9 | 4 | 7,8 |
| 225380 | UNC 3/8" | 16 | 1,588 | 27 | 11 | 4 | 9,37 |
| 225716 | UNC 7/16" | 14 | 1,814 | 27 | 11 | 5 | 10,95 |
| 225120 | UNC 1/2" | 13 | 1,954 | 36 | 14 | 5 | 12,52 |
| 225916 | UNC 9/16" | 12 | 2,117 | 36 | 14 | 5 | 14,1 |
| 225580 | UNC 5/8" | 11 | 2,309 | 41 | 18 | 5 | 15,68 |
| 225340 | UNC 3/4" | 10 | 2,54 | 41 | 18 | 6 | 18,84 |
| 225780 | UNC 7/8" | 9 | 2,822 | 50 | 22 | 5 | 22 |
| 225100 | UNC 1" | 8 | 3,175 | 60 | 22 | 6 | 25,16 |
| 225118 | UNC 1 1/8" | 7 | 3,629 | 60 | 25 | 6 | 28,31 |
| 225114 | UNC 1 1/4" | 7 | 3,629 | 60 | 25 | 7 | 31,49 |
| 225138 | UNC 1 3/8" | 6 | 4,233 | 70 | 25 | 9 | 34,63 |
| 225112 | UNC 1 1/2" | 6 | 4,233 | 85 | 30 | 8 | 37,81 |
| 225134 | UNC 1 3/4" | 5 | 5,08 | 85 | 36 | 8 | 44,12 |
| 225200 | UNC 2" | 4,5 | 5,644 | 85 | 36 | 9 | 50,45 |
