295
DIN EN 22 568
Narzynki maszynowe do gwintu metrycznego drobnozwojnego typu MF wykonane wg DIN-EN 22 568 w tolerancji 6g ze stali szybkotnącej HSSE z łamaczem wióra. Zakres dostępnych średnic M2.5 - M30.
| Zastosowanie | ||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1.1
|
1.2
|
2.1
|
2.2
|
2.3
|
3.1
|
3.2
|
3.3
|
4.1
|
4.2
|
5.1
|
5.2
|
6.1
|
6.2
|
7.1
|
8.1
|
8.2
|
9.1
|
10.1
|
10.2
|
11.1
|
| Legenda | ||||||||||||||||||||
| Rekomendowane użycie | ||||||||||||||||||||
| Możliwe użycie | ||||||||||||||||||||

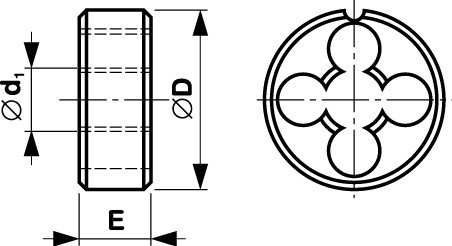

| Kod | ∅d1 | P | ∅D | E | S |
 |
|---|---|---|---|---|---|---|
| 295026 | MF 2,5 | 0,35 | 16 | 5 | 4 | 2,44 |
| 295031 | MF 3 | 0,35 | 20 | 5 | 4 | 2,94 |
| 295036 | MF 3,5 | 0,35 | 20 | 5 | 4 | 3,44 |
| 295041 | MF 4 | 0,5 | 20 | 5 | 4 | 3,93 |
| 295046 | MF 4,5 | 0,5 | 20 | 5 | 4 | 4,43 |
| 295051 | MF 5 | 0,5 | 20 | 5 | 4 | 4,93 |
| 295056 | MF 5,5 | 0,5 | 20 | 5 | 4 | 5,43 |
| 295061 | MF 6 | 0,75 | 20 | 7 | 4 | 5,91 |
| 295071 | MF 7 | 0,75 | 25 | 9 | 4 | 6,9 |
| 295081 | MF 8 | 1 | 25 | 9 | 5 | 7,87 |
| 295082 | MF 8 | 0,75 | 25 | 9 | 5 | 7,9 |
| 295091 | MF 9 | 1 | 25 | 9 | 5 | 8,88 |
| 295092 | MF 9 | 0,75 | 25 | 9 | 5 | 8,9 |
| 295101 | MF 10 | 1,25 | 30 | 11 | 5 | 9,86 |
| 295102 | MF 10 | 1 | 30 | 11 | 5 | 9,88 |
| 295103 | MF 10 | 0,75 | 30 | 11 | 5 | 9,9 |
| 295111 | MF 11 | 1 | 30 | 11 | 5 | 10,88 |
| 295112 | MF 11 | 0,75 | 30 | 11 | 5 | 10,91 |
| 295121 | MF 12 | 1,5 | 38 | 10 | 5 | 11,85 |
| 295122 | MF 12 | 1,25 | 38 | 10 | 5 | 11,86 |
| 295123 | MF 12 | 1 | 38 | 10 | 5 | 11,88 |
| 295141 | MF 14 | 1,5 | 38 | 10 | 5 | 13,85 |
| 295142 | MF 14 | 1,25 | 38 | 10 | 5 | 13,86 |
| 295143 | MF 14 | 1 | 38 | 10 | 5 | 13,88 |
| 295151 | MF 15 | 1,5 | 38 | 10 | 5 | 14,85 |
| 295152 | MF 15 | 1 | 38 | 10 | 5 | 14,88 |
| 295161 | MF 16 | 1,5 | 45 | 14 | 5 | 15,85 |
| 295162 | MF 16 | 1 | 45 | 14 | 5 | 15,88 |
| 295171 | MF 17 | 1,5 | 45 | 14 | 5 | 16,85 |
| 295172 | MF 17 | 1 | 45 | 14 | 5 | 16,88 |
| 295181 | MF 18 | 2 | 45 | 14 | 5 | 17,82 |
| 295182 | MF 18 | 1,5 | 45 | 14 | 5 | 17,85 |
| 295183 | MF 18 | 1 | 45 | 14 | 5 | 17,88 |
| 295201 | MF 20 | 2 | 45 | 14 | 5 | 19,82 |
| 295202 | MF 20 | 1,5 | 45 | 14 | 5 | 19,85 |
| 295203 | MF 20 | 1 | 45 | 14 | 5 | 19,88 |
| 295221 | MF 22 | 2 | 55 | 16 | 5 | 21,82 |
| 295222 | MF 22 | 1,5 | 55 | 16 | 5 | 21,85 |
| 295223 | MF 22 | 1 | 55 | 16 | 5 | 21,88 |
| 295241 | MF 24 | 2 | 55 | 16 | 6 | 23,82 |
| 295242 | MF 24 | 1,5 | 55 | 16 | 6 | 23,85 |
| 295243 | MF 24 | 1 | 55 | 16 | 6 | 23,88 |
| 295251 | MF 25 | 1,5 | 55 | 16 | 6 | 24,85 |
| 295261 | MF 26 | 1,5 | 55 | 16 | 6 | 25,85 |
| 295271 | MF 27 | 2 | 65 | 18 | 6 | 26,82 |
| 295272 | MF 27 | 1,5 | 65 | 18 | 6 | 26,85 |
| 295273 | MF 27 | 1 | 65 | 18 | 6 | 26,88 |
| 295281 | MF 28 | 2 | 65 | 18 | 6 | 27,82 |
| 295282 | MF 28 | 1,5 | 65 | 18 | 6 | 27,85 |
| 295301 | MF 30 | 2 | 65 | 18 | 6 | 29,82 |
| 295302 | MF 30 | 1,5 | 65 | 18 | 6 | 29,85 |
| 295303 | MF 30 | 1 | 65 | 18 | 6 | 29,88 |
